BIKMAN TECHThe revolutionary DJI Dock 3 has transformed autonomous drone operations by becoming the first drone-in-a-box solution capable of vehicle mounting. This game-changing innovation enables 24/7 remote operations in any environment, making it an essential tool for enterprises, emergency services, and security operations. At BIKMAN TECH, we've compiled this comprehensive guide to help you maximize your DJI Dock 3 experience and unlock its full potential.
1. What's in the Box
When you receive your DJI Dock 3, you'll find these essential components that form the backbone of your autonomous drone system:
- DJI Dock 3 main unit with weatherproof housing
- Choice of DJI Matrice 4D or DJI Matrice 4TD high-performance drone
- Integrated charging system with 27-minute fast charging capability
- Built-in RTK base station for centimeter-level positioning accuracy
- Nine-antenna system for intelligent signal switching
- Internal and external security cameras for comprehensive monitoring
- Advanced air conditioning system to protect electronics
- Backup battery system providing over 4 hours of emergency power
- Wind speed, rainfall, and temperature sensors for environmental monitoring
- Mounting hardware for stationary or vehicle installation
2. Initial Setup and Installation Guide
Setting up your DJI Dock 3 properly ensures optimal performance and longevity. We recommend following this step-by-step installation process:
- Site Selection: Choose an open location with stable power (100-240V AC) and network access at altitudes not exceeding 4500m (14,764 ft)
- Power Connection: Connect to a reliable power source capable of delivering up to 800W maximum input power
- Network Setup: Establish either Ethernet connection (10/100/1000Mbps) or 4G connectivity using the DJI Cellular Dongle 2
- Environmental Calibration: Allow the system to calibrate its sensors for local conditions including temperature, humidity, and wind patterns
- Drone Installation: Carefully place your Matrice 4D or 4TD inside the dock, ensuring proper connection to charging pins
- Software Configuration: Use the DJI Enterprise app on Android devices for initial deployment and commissioning
- Flight Zone Setup: Configure geocaging and no-landing zones through DJI FlightHub 2 platform
3. Understanding Your Drone Options
The DJI Dock 3 supports two exceptional drone models, each designed for specific operational needs. The Matrice 4D excels in high-precision mapping and detailed inspections with its 4/3 CMOS wide-angle camera delivering 20MP images. For thermal operations, the Matrice 4TD includes an uncooled thermal camera with 640×512 resolution, perfect for search and rescue or security applications.
Both drones feature impressive flight performance with 54 minutes of forward flight time and 47 minutes of hovering capability. The IP55 rating ensures reliable operation in challenging weather conditions, while the integrated RTK module provides positioning accuracy within 0.1m horizontally and vertically.

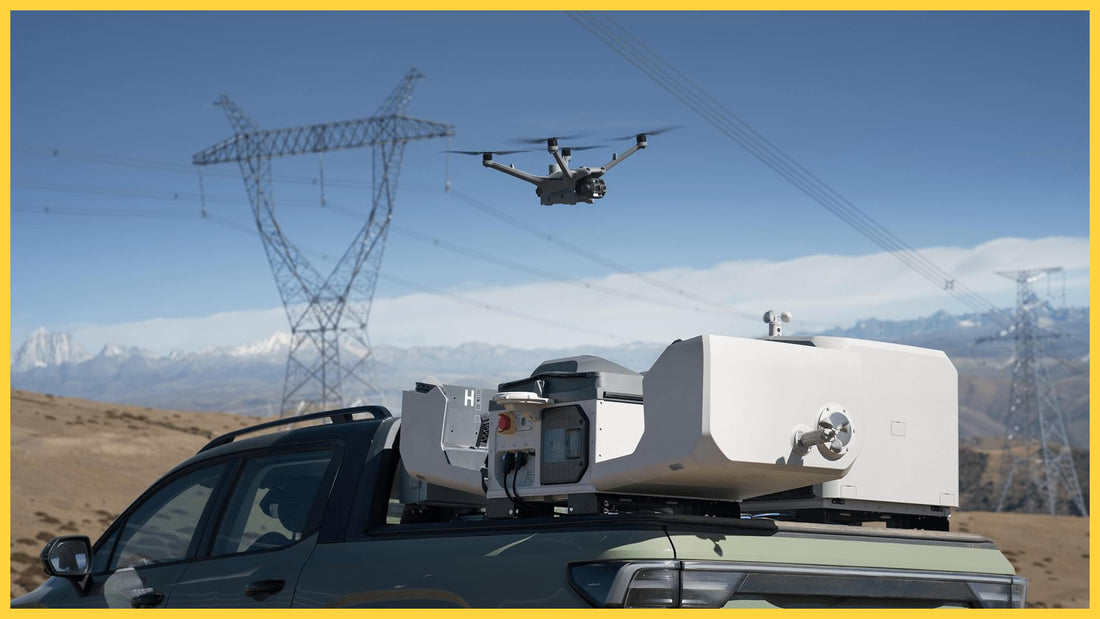

4. Mastering the Vehicle Mounting System
The groundbreaking vehicle mounting capability sets the DJI Dock 3 apart from previous generations. This mobile deployment feature dramatically extends operational range and enables rapid response to emergency situations.
The vehicle-mounted gimbal mount system includes right bracket and gimbal support weighing 440g (15.5 oz) and left bracket at 155g (5.5 oz). The system operates on 14V power supply and maintains IP55 protection rating even when mounted on moving vehicles. This mobility transforms emergency response, forest fire monitoring, and large-area inspections by bringing the launch point closer to the action zone.
5. Environmental Durability and Weather Performance
Your DJI Dock 3 is engineered to withstand extreme conditions with an impressive IP56 rating. The system operates reliably in temperatures ranging from -30°C to 50°C (-22°F to 122°F), making it suitable for deployment in harsh environments from Arctic conditions to desert heat.
The dock can handle landing operations in winds up to 12m/s (27mph), while the internal air conditioning system maintains optimal operating temperatures for sensitive electronics. The dock cover can open even with 10mm (0.4 inches) of ice accumulation, ensuring mission continuity in winter conditions.
6. Charging and Power Management
Efficient power management is crucial for continuous operations. The DJI Dock 3 features rapid 27-minute charging from 15% to 95% battery capacity, enabling near-continuous flight operations. The charging system outputs 35V DC and can fully charge the 6768mAh battery in controlled conditions.
The backup battery system provides over 4 hours of emergency power during outages, though air conditioning and heating functions are temporarily disabled. We recommend establishing dual power sources for critical operations to ensure uninterrupted service.
7. Advanced Camera Systems and Photography Tips
Maximizing image quality requires understanding your drone's camera capabilities. The Matrice 4D features a powerful 4/3 CMOS wide-angle camera with f/2.8-f/11 aperture range, while both models include medium tele (70mm equivalent) and tele cameras (168mm equivalent) for detailed inspection work.
For optimal results, utilize the Smart Capture mode for automated high-quality imaging and take advantage of the Night Scene Mode for full-color night vision capabilities. The minimum photo interval of 0.5 seconds on the 4D allows for rapid data collection during time-sensitive missions.
8. Connectivity and Communication Setup
Reliable communication is essential for remote operations. The DJI Dock 3 supports multiple connectivity options including Ethernet, 4G cellular, and the advanced DJI O4+ Enterprise video transmission system. The built-in nine-antenna array with 2T4R configuration ensures optimal signal quality and intelligent switching between frequencies.
For extended range operations, consider the airborne relay function where one Matrice 4D/4TD acts as a communication relay to extend another drone's operational range beyond line-of-sight limitations.
9. Safety Systems and Emergency Procedures
Safety remains paramount in autonomous operations. Your DJI Dock 3 incorporates comprehensive safety features including geocaging to prevent flyaways, configurable no-landing zones, and emergency landing protocols that avoid manned aircraft.
The omnidirectional obstacle sensing system provides 360-degree awareness with measurement ranges up to 20m forward and backward. For enhanced safety in complex environments, consider adding the optional Obstacle Sensing Module with LiDAR and millimeter-wave radar technology.
10. DJI FlightHub 2 Integration and Automation
Unlock the full potential of your DJI Dock 3 through seamless integration with DJI FlightHub 2. This cloud-based platform enables automated flight planning, real-time monitoring, and intelligent change detection along established routes.
The system automatically identifies new vehicles, vessels, or temperature anomalies, sending instant notifications to operators. This intelligence dramatically reduces manual monitoring requirements while maintaining comprehensive situational awareness.
11. Essential Accessories for Enhanced Operations
Expand your operational capabilities with purpose-built accessories. The DJI AL1 Spotlight provides 4.3 lux illumination at 100m distance, perfect for nighttime operations or search and rescue missions. The DJI AS1 Speaker delivers 114 decibels of audio output with 300m effective broadcast range for crowd control or emergency communications.
For pilots requiring manual control, the DJI RC Plus 2 Enterprise remote controller offers 25km transmission range and can operate the Matrice drones independently of the dock system.
12. Maintenance and Storage Best Practices
Regular maintenance ensures optimal performance and extends equipment lifespan. Clean the external sensors monthly, verify proper sealing of all connections, and inspect propellers for wear or ice damage. The anti-ice propellers should be replaced according to flight hour recommendations to maintain performance in cold conditions.
For long-term storage, maintain battery charge levels between 40-60% and store in climate-controlled environments when possible. The system's operating temperature range accommodates most storage conditions, but extreme temperature cycling should be avoided.
13. BVLOS Operations and Regulatory Compliance
The DJI Dock 3 is designed for Beyond Visual Line of Sight (BVLOS) operations with appropriate regulatory approval. Work with certified aviation consultants to obtain necessary permissions and develop Operating Safety Cases for your specific use cases.
Key compliance features include automatic altitude limitations, restricted flight zone awareness, and comprehensive logging of all flight activities for regulatory reporting requirements.
14. Data Security and Privacy Protection
Enterprise operations demand robust data protection. The DJI Dock 3 and FlightHub 2 platform utilize AES-256 encryption for personal data and require explicit opt-in for any data sharing with DJI. The system maintains ISO 27001 certification, ensuring compliance with international security standards.
Operators retain full control over captured data and can easily delete shared information through their DJI account or by contacting support services.
Maximizing Your Investment
The DJI Dock 3 represents the pinnacle of autonomous drone technology, combining cutting-edge hardware with intelligent software systems. Whether you're conducting security patrols, emergency response, or industrial inspections, this comprehensive guide provides the foundation for successful operations.
Ready to transform your operations with the world's most advanced drone-in-a-box solution? Click now to explore the latest deals and discover how the DJI Dock 3 can revolutionize your workflow. At BIKMAN TECH, we're here to support your journey into autonomous drone operations. Share your questions in the comments below or spread the word about this game-changing technology! 🚁
