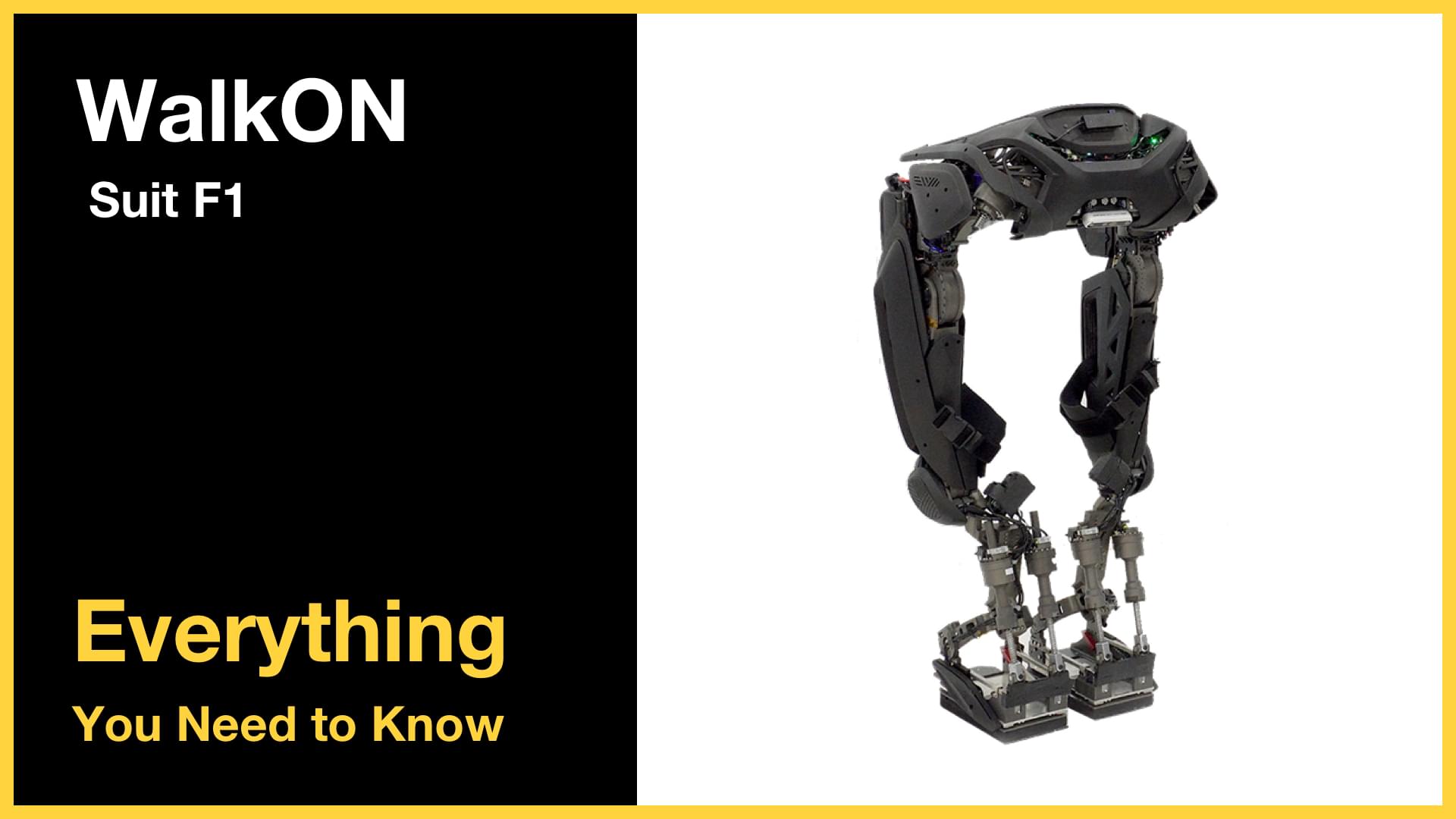

WalkON Suit F1 exoskeleton - Everything You Need to Know
BIKMAN TECHWelcome to the BIKMAN TECH blog! We're dedicated to bringing you detailed insights into the most innovative technology shaping our world. If you've ever been curious about the future of human mobility and the incredible potential of robotics, you've come to the right place. In this comprehensive guide, we are exploring the WalkON Suit F1, a marvel of engineering designed to restore the ability to walk. We'll break down its features, performance, and the science behind it, helping you understand this groundbreaking piece of technology.
About KAIST and
The Exoskeleton Laboratory (EXO-Lab)
KAIST's Exoskeleton Laboratory (EXO-Lab) is a research institution focused on developing mechatronic and robotic systems to enhance human quality of life. The lab specializes in the design and control of legged locomotive robot systems that aid human mobility. This work is critically important as it has led to significant advancements in wearable robots that assist individuals in physically demanding jobs, enable people with complete paraplegia to walk, and aid in the rehabilitation of paretic patients, demonstrating a profound impact on improving human physical capabilities and independence.
1. What is the WalkON Suit F1? 🤔
The WalkON Suit F1 is a sophisticated powered lower-limb exoskeleton developed by the team at the Robotics and Artificial Intelligence Laboratory at KAIST (Korea Advanced Institute of Science and Technology). It is not a consumer gadget, but a highly advanced robotic suit designed specifically for individuals with complete lower-limb paralysis (paraplegia). Its primary mission is to enable its wearer, referred to as a "pilot," to stand up, walk, navigate complex environments, and regain a level of mobility that was previously impossible. This suit is famously recognized for its participation and success in the Cybathlon, a global competition for pilots with disabilities using advanced assistive technologies.
2. Key Features and Innovations 🚀
The WalkON Suit F1 stands out due to its powerful and efficient design. It's engineered to handle real-world challenges, not just walking on a flat surface. Some of its most impressive features include:
- High-Torque Actuators: The suit is equipped with powerful electric motors at the hip, knee, and ankle joints. These actuators can generate significant torque, allowing the pilot to not only walk but also climb stairs, sit, stand, and navigate uneven terrain.
- Human-Inspired Walking: The control algorithms are designed to mimic a natural human gait. The suit analyzes the user's intended movements, often through buttons on the crutches, and translates them into smooth, stable walking patterns.
- Advanced Obstacle Negotiation: A key focus for the KAIST team was tackling difficult tasks. The WalkON Suit F1 has specific modes for climbing and descending stairs, crossing a tilted bridge, and even walking over stepping stones, showcasing its incredible versatility.
- Energy Efficiency: For a device this powerful, managing battery life is crucial. The suit incorporates energy-efficient motors and intelligent power management to maximize its operational time, allowing pilots to complete complex courses without a battery swap.
3. Design and Build Quality 🦾
When you look at the WalkON Suit F1, you see a perfect blend of strength and lightweight engineering. The frame is constructed from high-strength, lightweight materials like carbon fiber composites and duralumin, an age-hardenable aluminum alloy. This ensures the suit is rigid and durable enough to support the pilot's weight and withstand the forces of walking, while being as light as possible to reduce the burden on the pilot and the motors. The design is also modular, allowing for adjustments to fit different body sizes and ensure a comfortable, secure connection between the pilot and the machine.
4. Performance in the Real World: The Cybathlon
The true test of the WalkON Suit F1's capabilities is its performance in the Cybathlon. In this unique championship, pilots navigate a challenging obstacle course that simulates daily life. The WalkON Suit and its pilots have consistently been top performers, demonstrating the suit's reliability, speed, and precision. The tasks include getting up from a sofa, walking a slalom course, climbing a ramp, and, most impressively, ascending and descending a steep set of stairs. The suit's ability to complete these tasks swiftly and successfully under competition pressure is a testament to its superior engineering and the intensive training of its pilot.
5. Technical Specifications 📊
While exact commercial specs are not available for this research prototype, based on data from KAIST and Cybathlon reports, we can outline its key technical details. These specifications highlight the advanced nature of the device.
| Specification | Detail |
|---|---|
| Weight | Approximately 25 kg (55 lbs) |
| Frame Material | Carbon Fiber Composites, Duralumin |
| Actuated Joints | Hip (Flexion/Extension), Knee (Flexion/Extension), Ankle (Plantar/Dorsi Flexion) |
| Degrees of Freedom (DoF) | 10 DoF (5 per leg) |
| User Control Interface | Instrumented crutches with control buttons |
| Battery | Custom Lithium-ion (Li-ion) pack, designed for high power output |
| Pilot Height Range | Adjustable, typically around 1.65 m to 1.85 m (5 ft 5 in to 6 ft 1 in) |
6. Ease of Use and the Pilot's Role 🧑🤝🧑
Operating the WalkON Suit F1 is a complex skill that requires significant training and synergy between the pilot and the machine. The pilot uses crutches not only for balance but also as the primary control interface. Buttons on the crutch handles allow the pilot to switch between different modes (e.g., stand, walk, stairs) and initiate steps. The pilot must learn to anticipate the suit's movements and use their upper body to maintain balance and guide the exoskeleton. This is a true partnership; the suit provides the power for movement, while the pilot provides the intent and fine-tuned balance.
7. Battery Life and Power Management 🔋
For a mobility device, endurance is key. The WalkON Suit F1 is powered by a custom-designed, high-capacity lithium-ion battery pack. It's engineered to provide enough power to complete demanding tasks, like a full Cybathlon course, on a single charge. The development team has focused heavily on creating an efficient power transmission system and intelligent software that minimizes energy waste. This ensures the pilot has the confidence that the suit will perform for the duration of its intended use without an unexpected shutdown.
8. Real-World Use and Future Potential
Currently, the WalkON Suit F1 is primarily a research and competition platform. It is not available for purchase by the general public. However, its development is a crucial step toward creating commercially viable and user-friendly exoskeletons for personal mobility. The lessons learned from building and competing with the WalkON Suit are paving the way for lighter, smarter, and more affordable devices that could one day become a common mobility aid for people with paraplegia, offering them unprecedented independence in their daily lives.
9. Pros and Cons Summary ⚖️
Pros:
- ✅ Restores Mobility: Enables users with complete paraplegia to stand, walk, and climb stairs.
- ✅ High Performance: Proven capability in navigating complex and challenging environments.
- ✅ Advanced Engineering: Uses cutting-edge materials and powerful actuators for robust performance.
- ✅ Inspiring Technology: Pushes the boundaries of what is possible in assistive robotics.
Cons:
- ❌ Not Commercially Available: It remains a research prototype, not a product you can buy.
- ❌ Requires Extensive Training: Pilots need significant practice to master control of the suit.
- ❌ Weight: While made of lightweight materials, the overall weight can still be substantial for the user to manage.
- ❌ Dependency on Crutches: Requires the use of crutches for balance and control, engaging the pilot's upper body.
A Glimpse into the Future of Mobility
The WalkON Suit F1 is more than just a machine; it's a symbol of hope and a remarkable achievement in robotics and human augmentation. Here at BIKMAN TECH, we are incredibly impressed by the dedication of the KAIST team and the skill of the pilots who bring this technology to life. While it may be some time before we see devices like this in homes, the WalkON Suit F1 proves that a future with greater mobility for everyone is not just a dream, but an engineering reality in the making.
We hope this deep dive has given you a clear understanding of this incredible technology. If you are inspired by innovations that empower people, be sure to explore our site for the latest in assistive and mobility tech. Do you have any questions about exoskeletons or the WalkON Suit F1? Let us know in the comments below!
