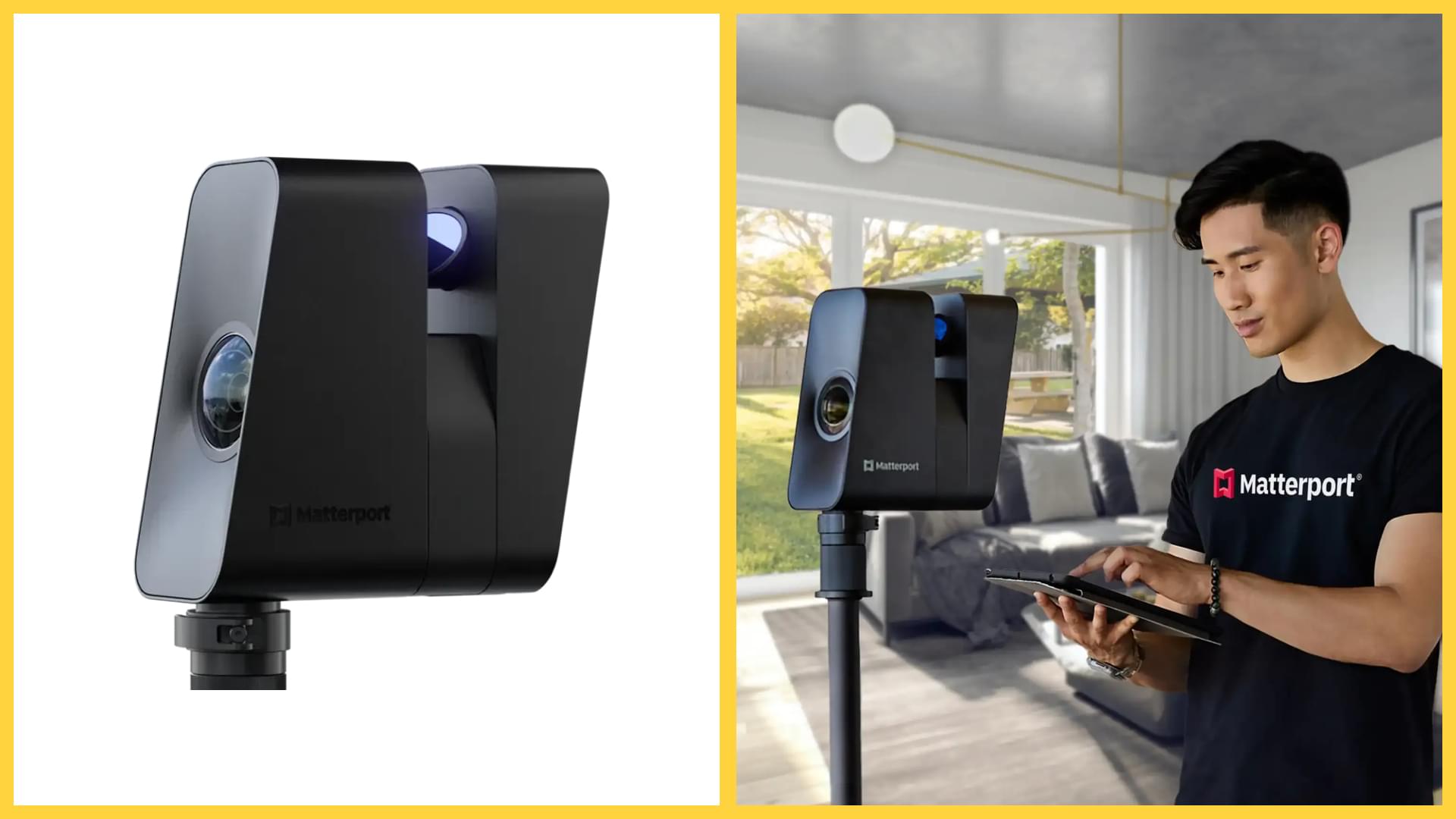

Imagine capturing an entire building in detailed 3D, from sun-drenched outdoor courtyards to dimly lit interior rooms, all in under 20 seconds per scan. The Matterport Pro3 makes this a reality. This isn't just an incremental update; it's a fundamental shift in how we create digital twins, utilizing cutting-edge LiDAR technology to unlock professional-grade capture anywhere. Whether you're in real estate, construction, or facilities management, mastering this tool is key to unlocking its full potential. Welcome to your comprehensive guide from BIKMAN TECH.
Check best deals
1. First Look: What's in the Box?
Unboxing your new Matterport Pro3 is a straightforward experience, though it's important to know exactly what you're getting. The box includes the camera itself, a removable rechargeable battery (45.36 Wh), a charging kit with an AC wall adapter and USB-C cable, a power adapter, and a soft carry case. This updated case is notably lighter and more compact, designed to house the camera, an extra battery, the tripod mount, and cables all in one place.
However, a critical detail for new users is what is not included. The tripod and the specific Pro3 tripod mount are not part of the standard package. You'll need to acquire these separately or opt for one of the bundled kits like the Performance or Acceleration Kit, which include these essential accessories along with extras like a hard case and spare batteries.
2. Setting Up Your Pro3: A Step-by-Step Guide
Getting your Matterport Pro3 up and running is a simple process, but following the correct order is crucial for a stable and successful scan. Here's our step-by-step guide to get you started.
-
Step 1: Charge the Battery: Before first use, fully charge the battery using the provided kit. It takes about 2.5 hours to reach 80% and 3.5 hours for a full charge.
-
Step 2: Prepare the Tripod: Set up your tripod and adjust its height to approximately 1.37 meters (4.5 feet), which is considered the optimal scanning height. Fully extend the legs first for stability.
-
Step 3: Attach the Tripod Mount: Securely screw the Matterport Pro3 tripod mount onto the center column of your tripod base. This mount is unique to the Pro3 and features a 3/8" post, so using the correct one is non-negotiable.
-
Step 4: Insert the Battery: Place the camera on its side, align the pins on the battery with the compartment, and snap it into place gently. Do not force it.
-
Step 5: Mount the Camera: Use both hands to carefully lower the camera onto the tripod mount, ensuring the socket on the bottom aligns with the column. Close the clamp to secure it. Remember, the camera's rotational axis is aligned with the lens, not the center of the camera.
-
Step 6: Power On: Press and hold the power button on the rear panel. Remove the magnetic lens cap.
-
Step 7: Connect to the App: Download the Matterport app on your iOS or Android device. Ensure Bluetooth is enabled on your phone. Open the app, start a new or existing job, and select "Matterport Pro3" as your source. The app will guide you through pairing.
3. Core Features: Scanning and Capturing
Once connected, the Matterport Pro3 is remarkably simple to operate. The core workflow involves positioning the camera, initiating a scan through the app, and moving to the next point once the camera display reads "Ready to Move." A key feature is the ability to choose from three scan density settings to match your project's needs.
-
Standard: The default, fastest setting, perfect for quick and efficient capture of most spaces.
-
Medium Density: Slows down the camera's rotation, capturing more raw data. This is excellent for detailed as-built modeling.
-
High Density: The slowest and most data-rich setting, ideal for capturing fine details like thin piping or wiring.
The Matterport Pro3 is a game-changer for outdoor scanning. Its new LiDAR system performs flawlessly in full sunlight, eliminating the depth issues with windows and skylights that plagued its predecessors. For the most demanding professional workflows, the Pro3 supports E57 and BIM file export with an extended range of up to 100 meters, seamlessly integrating with tools like Autodesk and Procore.
4. Essential Accessories for Optimal Performance
To get the most out of your Matterport Pro3, a few key accessories are considered essential. A sturdy tripod with a 3/8" post is a must-have. Spare batteries are highly recommended, especially for larger properties, as they allow you to continue scanning without interruption. The included soft carry case is great for short-term transport, but for frequent travel, the hard case or backpack offered in the bundles provides superior protection. Don't underestimate the small things; the door stops included in the bundles are surprisingly useful for holding doors open during your scan route.
5. Connectivity and App Mastery
The connection between your mobile device and the Matterport Pro3 is handled via Bluetooth Low Energy (BLE), which simplifies initial setup. Once paired, the camera operates over a dedicated 5GHz WiFi connection for fast data transfer. When connected, the app provides essential real-time feedback, including the camera's battery level and on-screen guidance for optimal scan positioning. For seamless operation, ensure your mobile device has adequate storage space, as large properties can generate significant amounts of data.
6. User Safety and Cleaning Guidelines
While the Matterport Pro3 is a robust piece of equipment, following basic safety and maintenance guidelines will ensure its longevity and your safety. The camera uses a Class 1 laser, which is safe for normal use. Always ensure your tripod is stable and level, and periodically check that the camera is securely clamped. The camera weighs 2.2 kg, so always use both hands when mounting or dismounting it to avoid drops. When it comes to cleaning, use a soft, dry cloth for the camera body and a dedicated lens cleaning solution and microfiber cloth for the LiDAR mirror and camera lens. Store the camera with the magnetic lens cap on to protect these sensitive surfaces.
7. Charging, Storage, and Travel
Understanding the charging and storage of your Matterport Pro3 is crucial for maintaining its battery health and overall condition. A single battery delivers over 220 scans on a continuous basis. To check the battery level, tap the power button briefly when the camera is off. The charging cable is a standard USB-C to USB-C. For long-term storage, remove the battery and keep the camera in a cool, dry place, ideally within its carry case. The redesigned all-in-one case makes traveling significantly easier. However, when flying, remember the lithium-ion battery (45.36 Wh) is subject to airline regulations, typically requiring it to be carried in your carry-on luggage.
8. Environmental Impact and Sustainability
Matterport has made conscious efforts to improve the environmental sustainability of the Matterport Pro3. The new all-in-one carry case is lighter and smaller, reducing the material used and the carbon footprint associated with shipping. The retail packaging itself incorporates recyclable materials. These improvements reflect a growing industry trend towards more sustainable manufacturing and logistics practices.
9. Troubleshooting Common Issues
Even with a high-end device like the Matterport Pro3, you may occasionally encounter a minor hiccup. Here's a quick guide to common issues and their solutions:
-
Camera won't power on: Check that the battery is correctly inserted and charged.
-
Can't connect to the app: Ensure Bluetooth is enabled on your phone and the camera is showing the "Ready to Pair" symbol on its display.
-
Poor scan quality: Verify the tripod is stable and level, and check that the lens and LiDAR mirror are clean.
-
Density options not showing: Make sure your camera firmware and the Matterport app are updated to the latest versions.
Your Next Step with the Matterport Pro3
The Matterport Pro3 stands as a monumental advancement in reality capture technology. Its shift to LiDAR provides unmatched versatility, allowing professionals to capture stunningly detailed 3D models both inside and out with incredible speed. This guide has walked you through everything from the initial unboxing to essential tips for connectivity and care, empowering you to harness its full potential. We hope this has clarified the setup and capabilities of this impressive camera.
