DJI SDR Transmission - Everything You Need to Know

Tired of wireless video systems that are either unreliable or astronomically expensive? For years, filmmakers have been stuck between consumer-grade Wi-Fi solutions that drop signal at the worst moments and professional gear with price tags that can break a production's budget. The DJI SDR Transmission system is here to shatter that compromise. By leveraging its world-class drone technology, DJI has created a wireless video solution that offers unprecedented range and stability for creators of all levels. In this comprehensive guide, we at BIKMAN TECH will break down everything you need to know about this game-changing device, from its core technology to its real-world performance, helping you decide if it's the right tool to elevate your workflow.

Check best deals

1. What is the DJI SDR Transmission?

The DJI SDR Transmission is a wireless video system designed to send a high-quality video feed from your camera to one or more monitors. Its target audience is small to medium-sized film crews and independent filmmakers who need a reliable, long-range monitoring solution without the high cost of traditional broadcast equipment. What truly sets it apart is its use of Software-Defined Radio (SDR) technology, a system DJI has perfected over a decade in its industry-leading drones. This technology provides a stronger, more stable signal that can penetrate obstacles and resist interference far better than standard Wi-Fi-based systems, making it a powerful tool for complex shooting environments.

2. Design and Build Quality

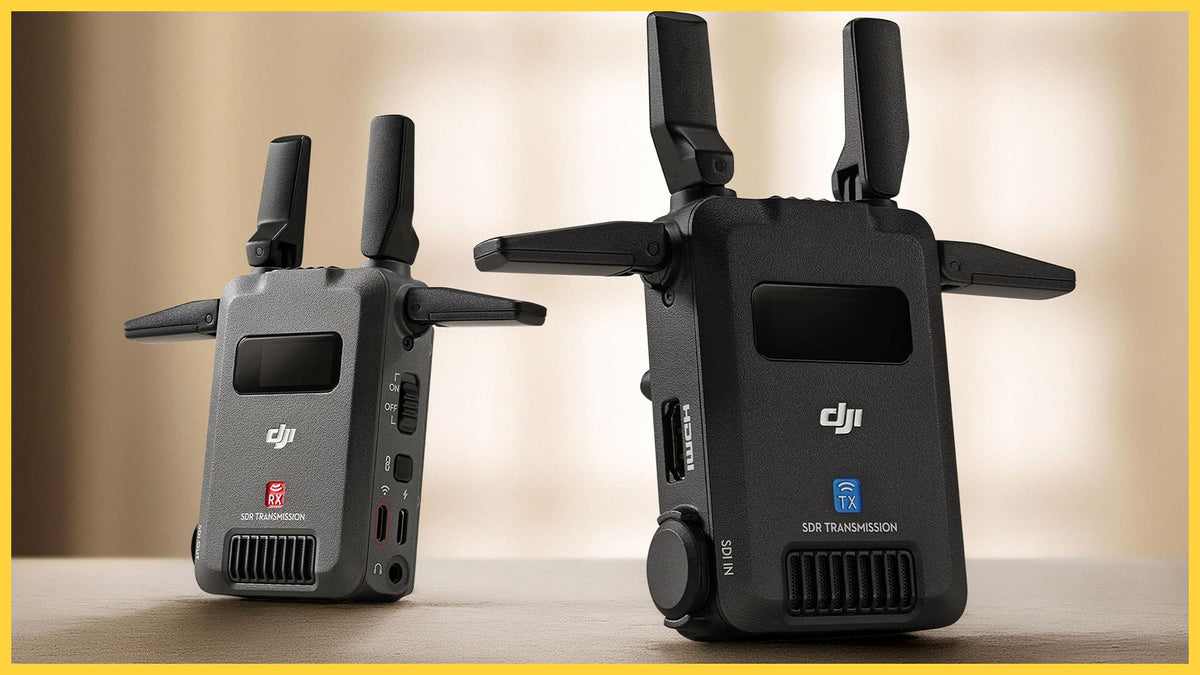

Right out of the box, the DJI SDR Transmission system feels both compact and durable. Both the transmitter (TX) and receiver (RX) units are incredibly lightweight, each weighing only 145 g (5.1 oz), making them easy to mount on any camera rig without affecting balance. The units are built from a robust plastic that feels sturdy enough for demanding field use. For easy identification on a busy set, the transmitter is black with a blue accent, while the receiver is grey with a red badge. A key design choice is the integrated, foldable antennas. While this makes for a sleek, portable package with no extra parts to lose, it's worth noting they are not user-replaceable, unlike some competitors. Each unit also features a small, fully touch-sensitive screen for at-a-glance status monitoring and easy menu navigation, a premium touch in this category.

3. The Core Technology: SDR Explained

The secret sauce behind the DJI SDR Transmission is its Software-Defined Radio (SDR) engine. Unlike typical wireless systems that use fixed Wi-Fi hardware, SDR technology allows for more intelligent and dynamic management of radio frequencies. This system constantly scans the 2.4 GHz, 5.8 GHz, and DFS frequency bands, automatically and seamlessly hopping to the most stable, interference-free channel. This makes it exceptionally resilient in crowded RF environments like live events or dense urban areas. This is the same core technology that gives DJI drones their legendary long-range, stable video links, now repurposed for filmmakers on the ground.

4. Three Powerful Transmission Modes

Versatility is a major strength of the DJI SDR Transmission, offering three distinct modes to suit different on-set needs.

First is SDR Control Mode, the system's highest performance setting. It delivers the maximum transmission distance of up to 3 km (1.8 miles), the lowest latency, and enables remote gimbal and camera control features. This mode is ideal for a primary camera operator and a focus puller who need the most reliable connection.

Next, SDR Broadcast Mode is designed for multi-viewer scenarios. In this mode, a single transmitter can send a signal to an unlimited number of receivers simultaneously, perfect for creating a "video village" where the director, client, and other crew members can all have their own monitor. This mode does trade some range for the ability to connect to many screens.

Finally, Wi-Fi Mode offers a convenient, receiver-less option for temporary monitoring. The transmitter can connect directly to up to two mobile devices running the Ronin app over a shorter distance of 200 m (656 ft). It's a perfect solution for a quick client preview or for a solo operator wanting a larger screen than their camera's built-in display.

5. Real-World Performance: Range and Latency

While the official spec sheet is impressive, the real-world performance is where the DJI SDR Transmission truly shines. User tests consistently confirm its exceptional range and, more importantly, its ability to maintain a stable signal through obstacles like walls, trees, and buildings—conditions where many other systems would fail. One user reported a stable signal at 1,450 feet through trees and around a river bend, while another maintained a connection through multiple building walls from 200 yards away.

When it comes to latency, DJI claims a system-only delay as low as 35 ms, with a more realistic end-to-end latency of around 80 ms when accounting for the camera and monitor. For most applications, this is perfectly acceptable. However, for critical focus pulling, an expert 1st AC may notice the slight delay. This positions the system as an outstanding tool for a huge range of productions, though high-end cinema crews may still prefer near-zero latency systems for the most demanding focus pulls.

6. Seamless Ecosystem Integration

For filmmakers invested in the DJI ecosystem, the DJI SDR Transmission is more than just an accessory; it's a powerful workflow enhancement. When paired with a compatible gimbal like the DJI RS 3 Pro, RS 4, or RS 4 Pro, the system becomes a comprehensive remote control hub. Through the Ronin app, operators can remotely control gimbal movements using features like Force Mobile or a virtual joystick.

This control extends to the camera itself. Users can remotely adjust key camera settings like aperture, shutter, and ISO, and even trigger recording directly from their mobile device. For certain Sony cameras, it also supports Mirror Control Mode, which mirrors the camera's entire menu system on your device for deep, remote adjustments. This deep integration creates a cohesive and efficient on-set experience.

7. Connectivity and Power Options

The DJI SDR Transmission is equipped with a professional suite of I/O ports. Both the transmitter and receiver feature full-size HDMI and 3G-SDI ports, ensuring broad compatibility with everything from mirrorless hybrids to high-end cinema cameras. A 3.5mm stereo jack is also included on both units to support the system's unique one-on-one Voice Call feature.

Powering the system is incredibly flexible. You can use ubiquitous NP-F style batteries, power the units via USB-C Power Delivery (PD) from a power bank, or—in a brilliant display of ecosystem integration—power the transmitter directly from a connected DJI RS series gimbal, simplifying your rig and reducing the number of batteries you need to manage.

8. Technical Specifications

For those who love the details, we've compiled the key specifications for the DJI SDR Transmission system into a clear table.

9. User Feedback: The Pros and Cons

After spending time in the hands of real-world users, a clear consensus has emerged about the DJI SDR Transmission. The praise is almost universal for its incredible range and signal penetration, with many users stating it outperforms much more expensive systems in challenging environments. Its versatility and deep integration with the Ronin ecosystem are also frequently highlighted as major workflow benefits.

However, there are a few common criticisms to be aware of. The most cited drawback is the audible fan noise, which can be an issue in quiet recording environments if the transmitter is mounted too close to a microphone. The 1080p resolution limit is another key compromise, as it doesn't allow for native 4K monitoring. Finally, some users have noted a slightly cumbersome initial setup process and confusion around the specific USB-C power requirements.

10. Our Verdict: Who is the DJI SDR Transmission For?

The DJI SDR Transmission is a landmark product that successfully redefines what's possible for wireless video in its category. Its core strengths—unparalleled range, rock-solid signal stability, and deep ecosystem integration—make it a transformative tool for a wide range of creators. It's an ideal solution for solo operators, indie filmmakers, and small production teams who need professional-grade reliability without the professional-grade price tag. It also serves as an excellent, cost-effective option for B-cameras or director's monitors on larger sets.

While it makes intelligent compromises like the 1080p resolution cap and the inclusion of fans, the value it delivers is undeniable. It bridges the gap between unreliable consumer gear and prohibitively expensive pro systems, creating a new benchmark for performance. If you're looking to elevate your on-set monitoring and control capabilities, the DJI SDR Transmission is one of the most compelling options on the market today. Ready to upgrade your workflow? Click to find the best deals on this incredible system. We at BIKMAN TECH hope this guide has been helpful. Let us know your questions in the comments below, and don't forget to share this post!
