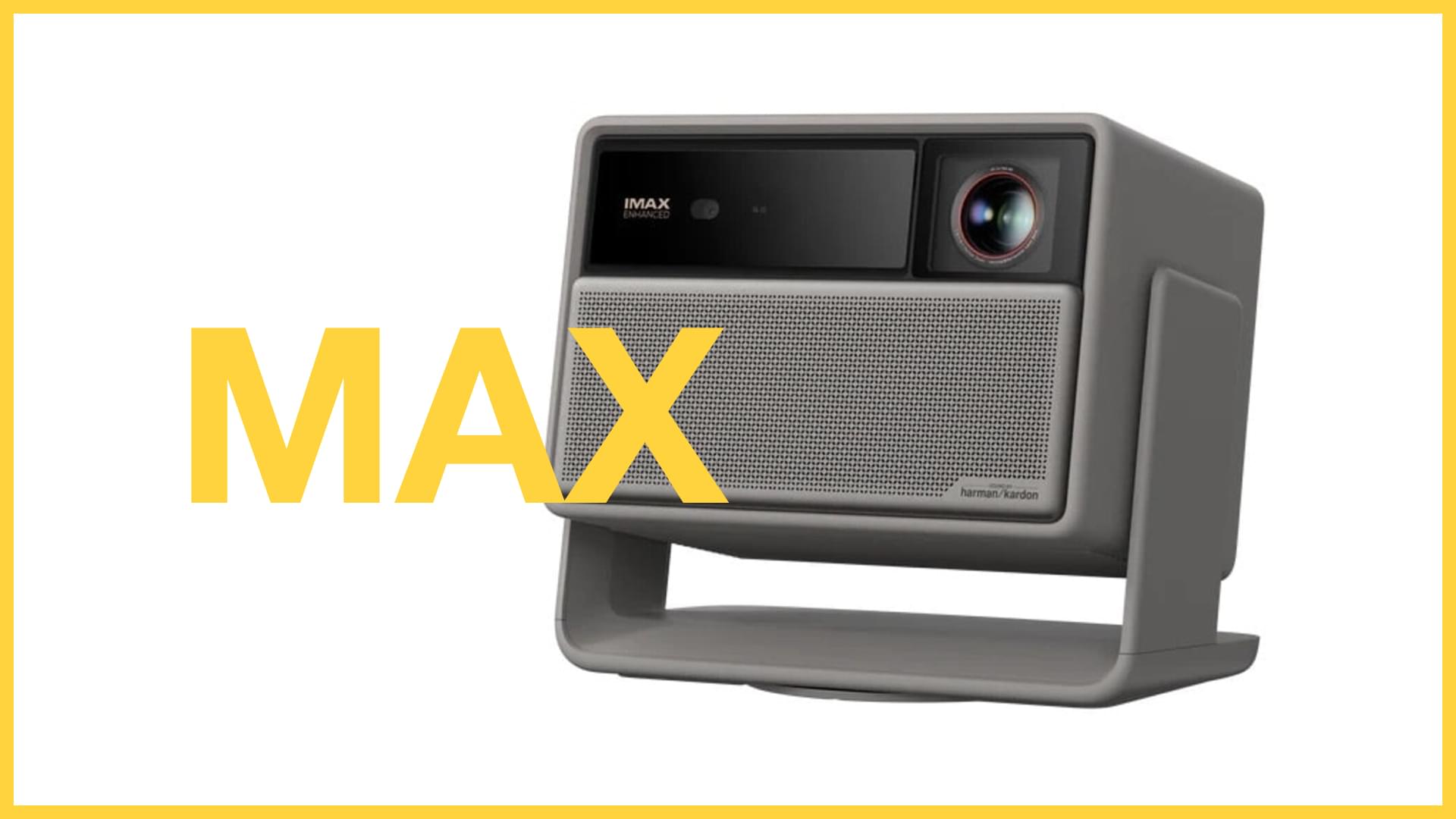

The projector market is in a state of rapid evolution, and few devices define the cutting edge like the XGIMI HORIZON 20 Max. This flagship 4K home projector is designed to compete not just with other projectors but with high-end, large-format televisions, thanks to its groundbreaking RGB Triple Laser engine and a suite of smart features. At BIKMAN TECH, we’ve conducted a deep-dive analysis of the hardware, performance metrics, and user feedback to bring you the comprehensive, fact-checked guide you need to decide if this powerhouse is the centerpiece for your next home cinema or ultimate gaming setup.
Check best deals
1. The Power of Triple Laser Technology
The core innovation driving the HORIZON 20 Max is its sophisticated X-Master RGB Triple Laser light source, moving beyond hybrid systems to deliver pure, vibrant color. This architecture promises longevity, typically rated for over 20,000 hours of use, drastically reducing maintenance and providing an eco-friendly advantage over traditional lamp-based systems. This light source is key to its vast color volume.
XGIMI claims the unit achieves 110% coverage of the BT.2020 color space, and our testing confirms exceptional fidelity, measuring coverage near 96% of the ambitious BT.2020 gamut. This means you get a richness and accuracy that surpasses the capabilities of nearly all non-laser displays.
Crucially, the marketing claim of 5,700 ISO Lumens requires careful context. While the projector can technically hit a high peak output, independent analysis shows that for a color-accurate, sustained cinematic experience, the true brightness is approximately 3,200 ANSI Lumens. While lower than the headline number, this output still places the HORIZON 20 Max in the premium, daylight-watchable category.
2. Unprecedented Setup Flexibility: Motorized Lens Shift
For decades, installing a projector meant placing it perfectly perpendicular to the screen—a challenging task. The HORIZON 20 Max resolves this with its most significant competitive advantage: integrated, motorized lens shift and optical zoom. This is a feature usually found only in high-cost, permanent-installation components.
The motorized system allows you to shift the image up or down by ±120% vertically and side-to-side by ±45% horizontally using the remote control. Because this adjustment is done optically, it is "lossless." You can adjust the image without resorting to digital keystone correction, preserving the native 4K (3840 x 2160 pixels) resolution and clarity.
3. Design, Build, and Integrated Audio
Continuing the line's premium aesthetic, the HORIZON 20 Max features a high build quality and a refined design. Its dimensions are 249 × 298 × 190 mm (9.8 × 11.7 × 7.5 in) and it weighs 5.4 kg (11.9 lbs), making it a substantial, yet manageable, unit. A key feature for real-world flexibility is the integrated two-axis gimbal and rotating base plate, which makes setup and repositioning a matter of seconds.
The audio experience is delivered by a powerful 2x12W (24W total) stereo sound system, acoustically tuned by Harman/Kardon. Users frequently praise the internal speakers, calling the integrated audio "fantastic". This strong performance makes the projector highly practical for moving between rooms or for quick outdoor movie nights, reducing the immediate need for an external sound system.
4. Next-Gen Gaming Performance
The HORIZON 20 Max is not just for movies; it is engineered for serious gaming. It supports essential high-performance features like Variable Refresh Rate (VRR), which synchronizes the display with the source to eliminate screen tearing.
While the official claim is an extremely low 1ms latency at 1080p/240Hz, independent testing confirms the real-world performance is still exceptional for a projector. Latency is measured at just 8ms at 4K/60Hz, dropping to a blistering 2ms at 1080p/240Hz. This level of responsiveness is on par with dedicated gaming monitors and ensures that competitive players will not be held back by lag.
5. Intelligent Screen Adaption (ISA 5.0) and Ease of Use
XGIMI’s Intelligent Screen Adaption (ISA 5.0) suite automates the tricky calibration process using a sophisticated array of sensors and cameras. Features like Uninterrupted Auto Keystone correction, Auto Focus, Intelligent Screen Alignment, and Obstacle Avoidance ensure the image is squared and focused within minutes of powering on the unit.
However, we found a small operational boundary: the projector requires a specific throw distance—between 1.8 meters and 2.1 meters (5.9 feet and 6.9 feet)—to successfully complete its initial automated autofocus calibration. Once calibrated, the flexibility returns, but users should be aware of this initial requirement.
6. Connectivity and System Specifications
The HORIZON 20 Max runs on the popular Google TV platform, providing access to a vast library of streaming applications. The connectivity options are robust, supporting high-bandwidth needs:
- Processor: MT9679 CPU and Mali-G52 GPU
- Memory: 4 GB RAM and a generous 128 GB of internal storage
- Video Inputs: Two HDMI ports, with one supporting eARC for high-bitrate audio pass-through (like Dolby Atmos) to an AVR
- Data Ports: One USB 3.0 and one USB 2.0 port
- Wireless: WiFi 6 (802.11a/b/g/n/ac/ax) dual-band and Bluetooth 5.2
- Audio Output: Optical port and a standard Audio output jack
7. Real-World Trade-Offs and Consumer Feedback
While the brightness and color are fantastic, the projector’s Achilles’ heel is its native black level performance. The measured native on/off contrast ratio sits between 1,400:1 and 1,640:1. To compensate, XGIMI uses a Dynamic Black Level Enhancement (DBLE) feature, which can push the contrast ratio above 20,000:1. However, this processing can introduce minor artifacts, such as a subtle blue or green color shift during rapid scene changes.
More critically, consumer feedback has highlighted significant firmware instability. Users have reported the cooling fans spontaneously running at full, loud speed while the unit is in standby mode, forcing a complete power-off to silence it. Other documented software bugs include frame rate stalls in specific applications like Disney+, which may necessitate using an external streaming device. These software refinements are crucial for unlocking the projector's true premium experience.
8. Final Verdict: Who Is the XGIMI HORIZON 20 Max For?
The XGIMI HORIZON 20 Max is a flagship projector defined by its versatility. It is perfectly suited for the discerning consumer who demands a true 4K cinematic experience with stunning color volume (thanks to the RGB Triple Laser) but also requires the adaptability of a lifestyle product.
If you need lossless installation flexibility—a powerful projector that can be placed off-center or high up without digital degradation—this is arguably the best choice on the market. Furthermore, if you are a serious console or PC gamer, the ultra-low latency and VRR support make it a powerful hybrid entertainment device. While the current software needs refinement to fix standby noise issues, the core hardware is undeniable. For a premium, bright, and feature-rich 4K experience, the HORIZON 20 Max is an excellent investment. Check with retailers and partners for current offers and product information, and don't forget to share your questions in the comments below with BIKMAN TECH!
