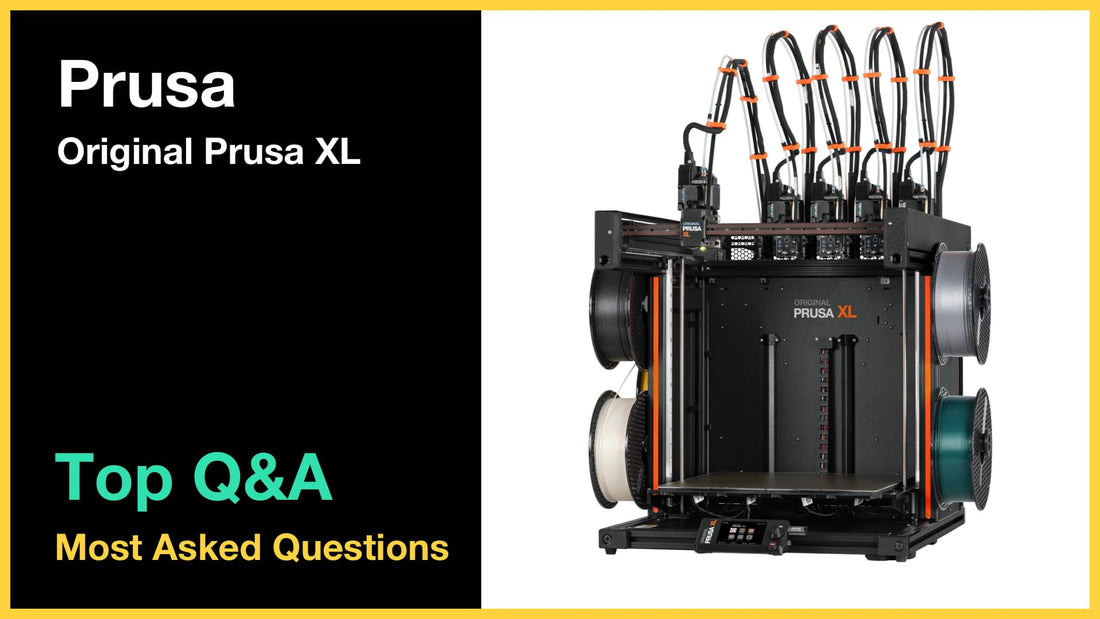

Original Prusa XL 5-toolhead 3D Printer - Top 10 Questions and Answers
BIKMAN TECHWelcome to the BIKMAN TECH blog! If you're exploring the exciting world of advanced 3D printing, you've likely heard about the Original Prusa XL 5-toolhead. This machine is a game-changer, but its extensive features can lead to many questions. We've delved deep into official sources, e-commerce sites, and consumer forums to bring you clear, concise answers to the top 10 questions people are asking. This guide will help you understand if this powerful printer is the right choice for your creative and professional projects.
1. What is the main standout feature of the Prusa XL?
The absolute star of the show is its automatic tool changer. Unlike most multi-material printers that use a single nozzle to purge and switch filaments (which is slow and wasteful), the Prusa XL features up to five independent toolheads. Each toolhead is a complete extruder assembly (called a "Nextruder") that can be picked up and parked automatically during a print. This system allows for incredibly fast and efficient switching between different colors or materials without cross-contamination. It's a genuine multi-material, multi-color powerhouse.
2. What is the true build volume of the Prusa XL?
The Prusa XL offers a massive build volume for large-scale projects. The printable area is 360 x 360 x 360 millimeters (approximately 14.17 x 14.17 x 14.17 inches). This generous space allows you to print large single objects or multiple smaller parts in a single run, making it ideal for prototyping, small-scale production, and complex models.
3. How does the printer guarantee a perfect first layer every time?
Prusa has tackled one of the most common 3D printing frustrations with an advanced calibration system. The Prusa XL uses a Load Cell sensor to perform a fully automatic first layer calibration. Before each print, the nozzle gently touches the print sheet in a grid pattern. The Load Cell precisely measures the force of the contact to create a highly accurate height map of the surface. This process completely eliminates the need for manual "Live Z" adjustments and ensures a flawless, perfectly adhered first layer, regardless of which print sheet you use.
4. Can it genuinely print with different types of materials in the same model?
Yes, and this is where it truly shines. The independent toolheads mean you can combine radically different materials in one print. For example, you can print a rigid object using PETG and then add flexible grips or seals using TPU. Another popular application is using a compatible material like PLA for the main model and PETG for its supports; since they don't stick well to each other, the supports break away incredibly cleanly. You can also use dedicated soluble support materials like PVA or BVOH for complex geometries that would otherwise be impossible to print.
5. What range of filaments can the Prusa XL handle?
The Prusa XL is designed to be a versatile workhorse, compatible with a wide array of materials. The all-metal hotend and direct-drive Nextruder can handle everything from standard filaments to more demanding engineering-grade materials.
Commonly Supported Materials:
| Material Category | Examples |
|---|---|
| Standard Plastics | PLA, PETG, ABS, ASA |
| Flexible Filaments | TPU, TPE |
| Engineering Plastics | Polycarbonate (PC Blend), Nylon (PA), Polypropylene (PP) |
| Composite Materials | Carbon fiber-filled, glass fiber-filled (requires a hardened nozzle) |
| Support Materials | PVA, BVOH |
6. Is it a fast printer, and what is the print quality like?
The Prusa XL is built for both speed and precision. It features a robust CoreXY motion system, which is known for allowing high print speeds and accelerations without compromising quality. Furthermore, it incorporates modern firmware technologies like Input Shaper and Pressure Advance. Input Shaper actively compensates for vibrations, reducing "ghosting" or "ringing" artifacts, while Pressure Advance ensures sharp corners and consistent extrusion. The result is high-quality, detailed prints produced at impressive speeds.
7. How does its filament waste compare to other multi-material systems?
This is a major advantage of the tool-changing system. Systems like Bambu Lab's AMS or Prusa's own MMU3 use a single nozzle and must push a significant amount of filament through it to clear out the previous color. This process creates a large, wasteful "purge block" or "poop."
The Prusa XL, with its independent extruders, only needs to create a very small priming tower to ensure the nozzle is ready after being picked up. This results in a drastic reduction in filament waste—often saving up to 80-90% of the material that would have been purged on other systems, making it far more economical for multi-color and multi-material printing.
8. What is the purpose of the segmented heatbed?
The Prusa XL features an innovative segmented heatbed composed of 16 individually controlled tiles. This clever design offers two key benefits:
- Energy Efficiency: When printing smaller objects, you only need to heat the specific segments underneath the model, saving a significant amount of power compared to heating a large monolithic bed.
- Warping Prevention: For large prints made with materials prone to warping, like ABS or ASA, the segmented bed provides incredibly even heating across the entire surface. It also allows for creating a "thermal expansion zone" by heating the outer tiles to a slightly different temperature, which helps to mitigate warping and improve bed adhesion.
9. What are some common issues or maintenance tasks to be aware of?
While the Prusa XL is a highly automated and robust machine, it is a complex piece of equipment. Based on user feedback, a few areas require attention:
- Calibration is Key: The initial tool offset calibration is critical for perfect multi-material prints. Take your time with this process, ensuring nozzles are perfectly clean for the most accurate results.
- Docking Maintenance: Some users have reported toolhead docking issues. This can often be resolved by ensuring the guide rails are properly lubricated as per the maintenance schedule, allowing the toolheads to slide and dock smoothly.
- Learning Curve: For those new to multi-tool systems, there can be a learning curve, particularly within the slicer software (PrusaSlicer). It's best to start with simple two-material prints and gradually work your way up to more complex five-material projects.
10. Can I use different nozzle sizes across the toolheads simultaneously?
Yes, you can equip different toolheads with different nozzle sizes (e.g., a 0.6 mm nozzle for fast infill and a 0.25 mm nozzle for detailed outer perimeters). However, the slicer software, PrusaSlicer, currently has some limitations when combining them in a single part. The most common use case right now is to print separate objects on the same print bed, each with a different nozzle size. The software is continuously being updated, so we expect more integrated multi-nozzle features in the future.
We hope this Q&A, brought to you by BIKMAN TECH, has clarified the incredible capabilities of the Original Prusa XL 5-toolhead 3D printer. It’s a machine designed for serious makers, engineers, and businesses who need reliability, versatility, and large-scale capacity. By minimizing waste and maximizing material combinations, it opens up a new world of 3D printing possibilities. If you're ready to take your projects to the next level, click to find the best deals on this exceptional printer. Do you have more questions? Drop them in the comments below!
