Here at BIKMAN TECH, we have watched the resin 3D printing "resolution wars" escalate from 4K to 12K with bated breath, but the launch of the Anycubic Photon Mono M7 Pro marks a shift towards something far more practical: reliability and automation. While pixel count is important, Anycubic has correctly identified that environmental stability—specifically temperature—is often the silent killer of print success. With its integrated intelligent resin management and heating system, the M7 Pro promises to be a "set it and forget it" powerhouse for prosumers. In this comprehensive guide, we will break down whether this ambitious machine delivers on its high-speed promises or if its mechanical complexity creates more problems than it solves.
Check best deals
1. Product Overview and Design Architecture

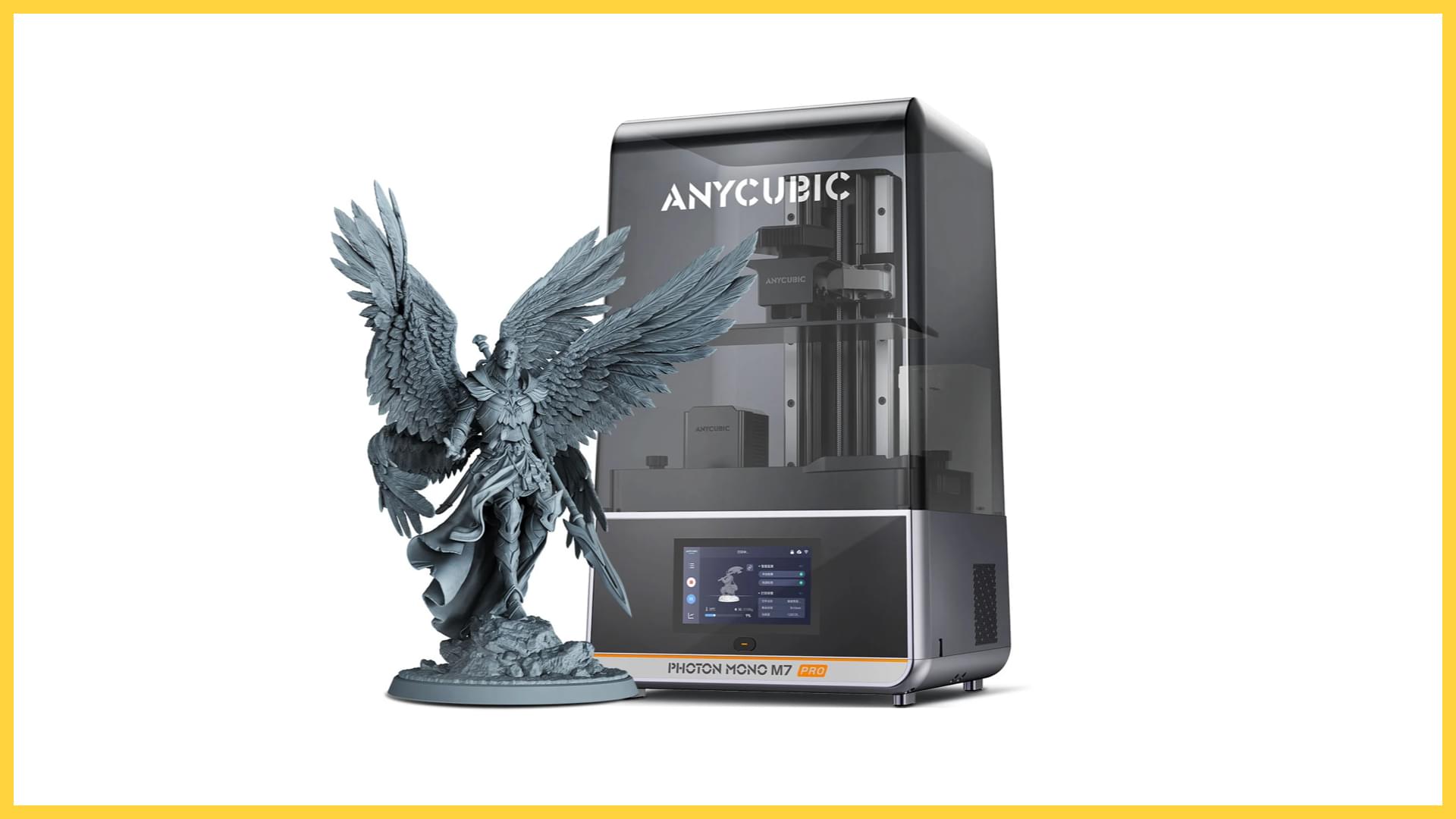

The Anycubic Photon Mono M7 Pro is a mid-sized MSLA printer that targets the sweet spot between hobbyist entry-level machines and large-format industrial units. Standing at 520 mm (20.5 in) tall with a footprint of 312 x 315 mm (12.3 x 12.4 in), it commands significant desk space. The chassis is rigid and substantial, weighing in at 12.8 kg (28.2 lbs), which we found provides excellent stability during high-speed operation. Unlike some competitors that have moved to hinged lids, the M7 Pro retains the classic lift-off acrylic cover. While this offers 360-degree visibility, it can be cumbersome in tight spaces where vertical clearance is limited.
2. The 14K Visual Experience and Optical System
The headline feature is undoubtedly the 10.1-inch monochrome LCD screen, boasting a staggering 14K resolution (13,312 x 5,120 pixels). This delivers an XY resolution of 16.8 x 24.8 microns. To ensure this density translates to actual print quality, Anycubic employs their "LighTurbo 3.0" system, using COB LEDs and Fresnel lenses to collimate light directly into the pixels.
However, there is a nuance potential buyers must understand. To achieve its advertised speeds, the machine ships with ACF (Advanced Composite Film). While this film releases layers quickly, its frosted texture slightly diffuses the light, softening the ultra-sharp edges the 14K screen is capable of producing. For users demanding maximum crispness on miniatures, swapping to a standard PFA film might be necessary, though this sacrifices some speed.
3. Speed and Performance Capabilities
Speed is the M7 Pro's primary battleground. Anycubic claims a maximum print speed of 170 mm/h, a figure that leaves older generation printers in the dust. In our analysis, we found this speed is conditional: it requires using "High-Speed Resin" and a coarser layer height of 0.1 mm. For standard high-quality printing at 0.05 mm, speeds settle closer to a still-impressive 60-80 mm/h. The secret sauce here is the machine's ability to rip the print off the ACF film rapidly and the heated vat ensuring the resin flows back instantly.
4. Intelligent Resin Management (IRM)
This is where the M7 Pro differentiates itself most aggressively. The Dynamic Temperature Control vat circulates resin through a heating element to maintain an optimal 25°C - 35°C (77°F - 95°F). For users in colder climates or unheated workshops, this is a game-changer, eliminating the need for external space heaters or fermentation belts.
The system also features an Auto-Fill and Auto-Withdrawal unit. It pumps resin from a bottle into the vat to keep levels constant and can suck resin back out after a print. While incredibly convenient for long print jobs, we advise caution: the system relies on peristaltic pumps and gravity. We have noted reports of siphoning issues where resin can overflow if the bottle is positioned incorrectly or if sensors get dirty. Regular maintenance of the conductivity probes is non-negotiable to prevent messy leaks.
5. Technical Specifications
| Build Volume |
223 x 126 x 230 mm (8.8 x 5.0 x 9.1 in) |
| Resolution |
14K (13,312 x 5,120) |
| XY Resolution |
16.8 x 24.8 μm |
| Max Speed |
170 mm/h (High-Speed Mode) |
| Light Source |
LighTurbo 3.0 (COB + Fresnel) |
| Connectivity |
USB 2.0, Wi-Fi 2.4GHz |
| Power Rating |
240W |
6. Ease of Use and "AI" Features
Anycubic markets the M7 Pro as "Leveling-free." While it comes factory calibrated, the build plate retains a 4-point manual leveling mechanism, which we appreciate for long-term maintenance. The machine also includes a suite of "AI" sensors:
-
Residue Detection: Prevents the build plate from crushing cured debris into the screen.
-
Failed Print Detection: Pauses the print if it senses the object has detached from the plate.
While these features provide peace of mind, false positives can occur with hollow models, leading some power users to disable them for specific projects.
7. Software Ecosystem and Workflow
The printer is compatible with Anycubic's own Photon Workshop, as well as industry favorites Chitubox (v2.2+) and Lychee Slicer (v7.1+). Connectivity is robust, with Wi-Fi allowing for remote monitoring via the Anycubic App. While the "Cloud Slicing" feature in the app is handy for quick reprints, serious work is best done on a desktop slicer. The encrypted file format initially slowed down third-party adoption, but support is now largely available.
8. Real-World Reliability and Maintenance
Living with the M7 Pro is different from a standard passive printer. The circulating heater means you cannot simply swap resin colors in seconds; the system requires a flushing cycle using alcohol to clean the internal tubes. This makes the printer excellent for production runs using a single material but cumbersome for users who change colors daily. Furthermore, the complexity of the pumps introduces more points of failure. We strongly recommend keeping the resin sensors clean to avoid the "siphon effect" leaks mentioned earlier.
9. Sustainability and Power Consumption
The integration of active heating comes with an energy cost. The M7 Pro is rated at 240W, significantly higher than the ~50W draw of standard printers. While Anycubic promotes "Plant-Based" resins as an eco-friendly option, we must remind our readers that these materials are still hazardous waste and require proper disposal. The "Eco" label refers to the monomer source (soybean oil) rather than biodegradability.
10. Pros and Cons
Pros
-
Active Heating: Prints reliably in cold environments without external aids.
-
Speed: 170 mm/h throughput is fantastic for prototyping.
-
Resolution: 14K screen offers future-proof precision.
-
Automation: Auto-fill system is a blessing for large, resin-hungry prints.
Cons
-
Complexity: Pumps and tubes require diligent cleaning and maintenance.
-
Leak Risk: Siphoning and sensor failures can cause significant messes.
-
ACF Film: Sacrifices some 14K sharpness for speed.
-
Noise: Pumps and fans make it louder than passive competitors.
11. Final Verdict
The Anycubic Photon Mono M7 Pro is a high-performance tool designed for a specific user: the "prosumer" who needs throughput and consistency in uncontrolled environments. If you print in a cold garage or run a small print farm, the heated vat and auto-fill features are worth the price of admission. However, for those seeking maximum detail with minimum maintenance, simpler machines might be a better fit. At BIKMAN TECH, we see this as a powerful workhorse, provided you respect its mechanical complexity.
Got questions about resin compatibility or maintenance? Drop a comment below and let's discuss!
